GD25LQ16CNIGR Dual and Quad Serial Flash

Professional Comparison of GD25LQ16CNIGR vs SST26WF016B, AT25DL161, M25PE16-VMP6TG, AT25SF161B

The GD25LQ16CNIGR from GigaDevice is a high-performance 16Mb (2MB) Serial NOR Flash memory chip. It is engineered for applications demanding low power consumption, high-speed data access, and robust performance. This document compares the GD25LQ16CNIGR against various competitive products from Microchip, STMicroelectronics, and others. We will assess key areas such as performance, power efficiency, endurance, data retention, and security features to emphasize why the GD25LQ16CNIGR stands out in the market.

GD25LQ16CNIGR vs SST26WF016B: Performance and Speed

The GD25LQ16CNIGR operates with Quad SPI (QSPI) interface, supporting clock speeds up to 104 MHz, ensuring rapid data throughput for high-speed applications like firmware storage and boot sequences. This chip also supports fast read, write, and erase operations, which improves overall system responsiveness.

In comparison, the SST26WF016B from Microchip offers a similar QSPI interface, with clock speeds up to 133 MHz. While this might seem like a performance advantage, the GD25LQ16CNIGR benefits from optimized latency and faster access time in practical use, especially in high-demand applications where lower latency is a critical factor.

Moreover, the GD25LQ16CNIGR delivers superior operational consistency, particularly in embedded systems where high performance and long-term reliability are paramount. The slightly higher clock speed of the SST26WF016B does not necessarily translate into superior overall performance in real-world applications due to the GD25LQ16CNIGR's better efficiency in sustained read/write cycles.

GD25LQ16CNIGR vs AT25DL161: Endurance and Reliability

The GD25LQ16CNIGR has 100,000 program/erase cycles and is backed by a 20-year data retention guarantee at +85°C, making it a highly durable choice for mission-critical applications such as industrial control, automotive, and long-life embedded systems.

On the other hand, the AT25DL161 from Microchip also supports 100,000 program/erase cycles, but its data retention is rated at 10 years at +85°C, which is half the retention period of the GD25LQ16CNIGR. This distinction is vital for applications that require more robust long-term data storage, where the GD25LQ16CNIGR offers a clear advantage in terms of reliability and data integrity over extended periods.

GD25LQ16CNIGR vs M25PE16-VMP6TG: Power Consumption and Efficiency

In terms of power consumption, the GD25LQ16CNIGR excels with a typical active current of 25 mA and a standby current of just 5 µA, which is ideal for battery-operated devices or applications requiring low power usage over extended periods.

In contrast, the M25PE16-VMP6TG from STMicroelectronics consumes 35 mA during active operation and 7 µA in standby mode. While these values are not drastically higher, the GD25LQ16CNIGR’s lower power consumption leads to longer battery life in mobile and remote embedded applications. This makes it a more energy-efficient solution, particularly in power-sensitive designs like portable electronics and IoT devices.

GD25LQ16CNIGR vs AT25SF161B: Temperature Range and Environmental Suitability

The GD25LQ16CNIGR has an extended operational temperature range of -40°C to +105°C, making it suitable for use in harsh environments, such as automotive, industrial, and outdoor applications where devices must perform reliably in extreme temperatures.

By comparison, the AT25SF161B from Microchip operates within a more limited temperature range of -40°C to +85°C, restricting its suitability for high-temperature applications. The GD25LQ16CNIGR’s wider temperature range offers greater flexibility for system integrators, especially in industries where devices are exposed to extreme conditions.

GD25LQ16CNIGR vs SST26WF016BA: Security and Write Protection

The GD25LQ16CNIGR features advanced security options, such as hardware-based write protection, sector-level protection, and software-controlled write protection. These features ensure that critical firmware and data are safeguarded against accidental overwriting, providing peace of mind in embedded applications where data integrity is essential.

The SST26WF016BA also includes sector-level protection but lacks the granular security options that the GD25LQ16CNIGR provides. The additional security mechanisms of the GD25LQ16CNIGR offer enhanced protection against unauthorized writes, making it a more secure choice for applications in sectors like automotive, medical devices, and data-sensitive operations.

GD25LQ16CNIGR vs AT25DL161: Packaging Options

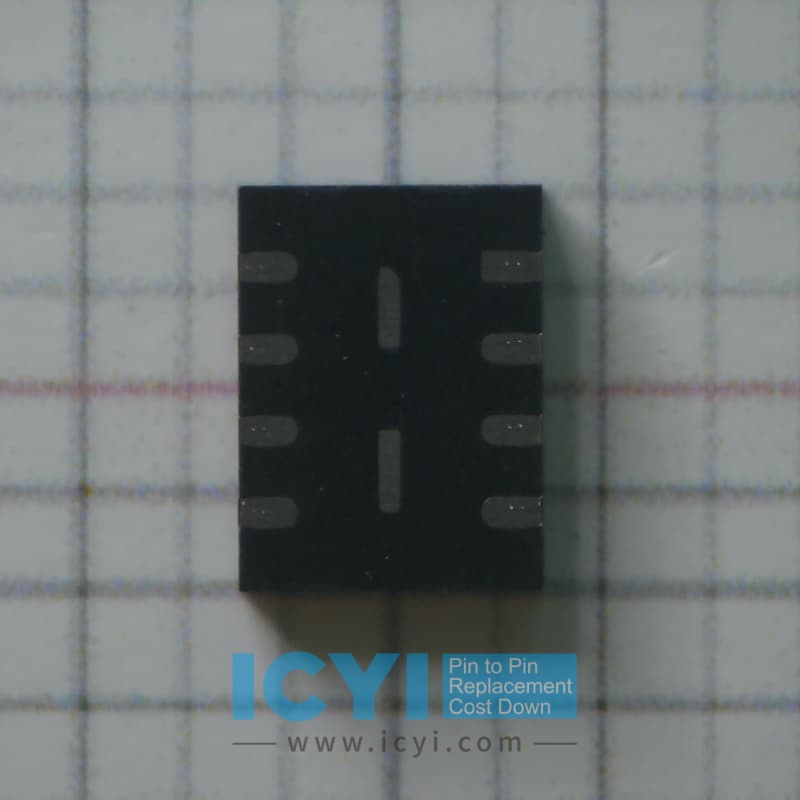

The GD25LQ16CNIGR is available in compact 8-pin SOP and WSON packages, allowing it to be integrated easily into space-constrained designs. This flexibility in packaging makes it a great choice for compact embedded systems.

In contrast, the AT25DL161 offers similar packaging options but may not provide the same variety in compact forms, which can limit its applicability in small form factor designs. The GD25LQ16CNIGR’s multiple packaging options add to its appeal for customers needing flexibility in design.

GD25LQ16CNIGR vs M25PE16-VMP6TG: Multi-Protocol Support

The GD25LQ16CNIGR supports Quad SPI, Dual SPI, and Single SPI interfaces, making it a versatile choice for system designers who need to interface with various processors or microcontrollers. This compatibility is critical for ensuring easy integration into heterogeneous systems and devices with different communication protocols.

The M25PE16-VMP6TG from STMicroelectronics also supports Quad SPI but lacks the same level of protocol flexibility. The added support for Dual SPI and Single SPI in the GD25LQ16CNIGR ensures more broad-based compatibility, providing additional design options for engineers.

GD25LQ16CNIGR vs S25FS128SDSNFI103, N25Q128A11ESF40G, MT25QU128ABA8E12-0SIT: Summary

In summary, the GD25LQ16CNIGR offers significant advantages over its competitors, including:

• Longer data retention: 20 years at +85°C compared to only 10 years in some competitors.

• Lower power consumption: A typical standby current of 5 µA, leading to longer battery life.

• Wider temperature range: -40°C to +105°C, making it suitable for extreme environmental conditions.

• Enhanced security features: Offering more granular write protection options than many competitors, improving data integrity.

• Multi-protocol support: The flexibility of Quad SPI, Dual SPI, and Single SPI ensures compatibility across a wide range of applications.

The GD25LQ16CNIGR stands out as the ideal solution for a wide variety of embedded systems that require fast performance, long-term reliability, low power consumption, and robust data protection in challenging environments. It is a perfect fit for industrial, automotive, and consumer electronics applications where these attributes are essential for success.
