GD25Q16ESIGR is a Replacement parts of
AT25DL161/M25P16-VMC6G
Mfr.Part No. :
GD25Q16ESIGRManufacturer :
GigaDeviceDescription :
Dual and Quad Serial FlashPackaging :
reelPackage :
SOP-8-208milStock :
in stockPrice :
$0.15-$0.32
GD25Q16ESIGR
| Price: | $0.15-$0.32 | $1.1-$1.5 |
|
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
GD25Q16ESIGR |
AT25DL161
M25P16-VMC6G
|

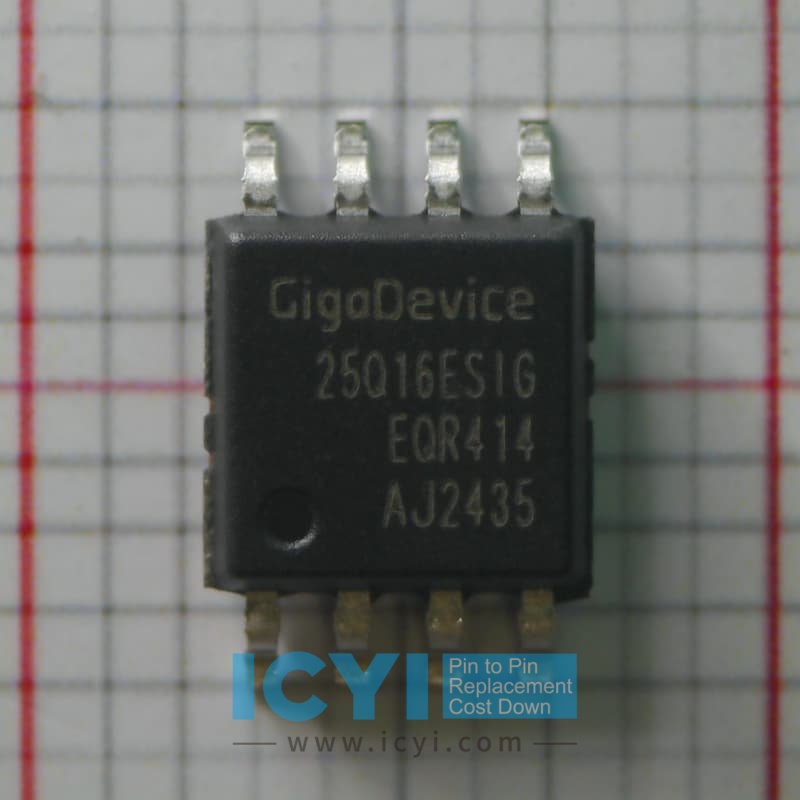

The GD25Q16ESIGR from GigaDevice is a 16Mb NOR Flash memory chip that offers a robust combination of high speed, low power consumption, and reliability for a wide range of embedded system applications. Below is a detailed comparison of the GD25Q16ESIGR with three competitor products: AT25DL161, M25P16-VMC6G, and M25P16-VMN3PB, highlighting the key advantages of the GD25Q16ESIGR.
The GD25Q16ESIGR supports a Quad SPI interface with a clock speed up to 104 MHz, ensuring fast data transfer and low latency. This high-speed interface makes it ideal for applications requiring rapid access to data, such as IoT devices, automotive systems, and consumer electronics.
In comparison, the AT25DL161, manufactured by Microchip, also offers a Quad SPI interface but operates at a slightly lower maximum clock speed of 83 MHz. As a result, the GD25Q16ESIGR provides faster data throughput and quicker read/write times than the AT25DL161, making it better suited for high-speed applications.
The GD25Q16ESIGR features low power consumption, with a standby current as low as 5 µA, ensuring extended battery life for portable and energy-sensitive applications. This power-efficient design makes it particularly well-suited for battery-powered devices and low-power embedded systems.
In contrast, the M25P16-VMC6G, manufactured by STMicroelectronics, exhibits a slightly higher standby current of 7 µA. While still relatively low, this power consumption results in shorter battery life compared to the GD25Q16ESIGR. For applications where energy efficiency is critical, the GD25Q16ESIGR offers a distinct advantage.
The GD25Q16ESIGR offers a wide operating temperature range of -40°C to +105°C, providing superior thermal resilience. This makes it ideal for automotive, industrial, and outdoor applications, where extreme temperature fluctuations are common, ensuring consistent and reliable performance under harsh conditions.
On the other hand, the M25P16-VMN3PB operates within a narrower temperature range of -40°C to +85°C. This limited thermal range reduces its suitability for applications requiring high thermal tolerance, such as automotive electronics or industrial equipment. The GD25Q16ESIGR's broader temperature tolerance ensures better overall reliability in challenging environments.
The GD25Q16ESIGR offers an impressive data retention period of 20 years, with 100,000 program/erase cycles. This extended data retention makes it an excellent choice for long-term data storage applications, such as automotive systems and industrial control systems, where data integrity over time is crucial.
In contrast, the AT25DL161 offers a data retention period of 10 years and 100,000 program/erase cycles, which is half the duration of the GD25Q16ESIGR. For applications where long-term data retention is essential, the GD25Q16ESIGR offers a distinct advantage in longevity and reliability.
The GD25Q16ESIGR is designed with enhanced security features, including hardware-based write protection and sector protection. These features ensure that data stored on the device remains secure from accidental writes and unauthorized access. This is particularly important for applications involving sensitive data or requiring robust data integrity.
The M25P16-VMC6G provides sector-level write protection, but it lacks the additional security features offered by the GD25Q16ESIGR, such as hardware-based protection. For applications requiring higher data security, the GD25Q16ESIGR provides superior protection and peace of mind.
The GD25Q16ESIGR offers excellent cost-to-performance value, providing high-speed data transfer, low power consumption, and reliable security features at a competitive price point. This makes it suitable for both high-volume production and cost-sensitive applications.
The M25P16-VMN3PB, while offering similar functionality, tends to be priced slightly higher due to its limited features compared to the GD25Q16ESIGR. For customers seeking a cost-effective solution without compromising on performance, the GD25Q16ESIGR provides a superior balance of features and price.
The GD25Q16ESIGR provides the following key advantages over its competitors:
Faster Performance: The GD25Q16ESIGR operates at a maximum clock speed of 104 MHz, offering faster data transfer than the AT25DL161 (83 MHz) and M25P16-VMC6G (66 MHz).
Lower Power Consumption: The GD25Q16ESIGR features a standby current of 5 µA, offering superior energy efficiency compared to the M25P16-VMC6G (7 µA) and AT25DL161.
Extended Temperature Range: The GD25Q16ESIGR provides an operating temperature range of -40°C to +105°C, making it more suitable for extreme environments than the M25P16-VMN3PB (-40°C to +85°C).
Superior Data Retention: The GD25Q16ESIGR offers 20 years of data retention, double the retention of the AT25DL161 (10 years), ensuring long-term storage reliability.
Enhanced Security: The GD25Q16ESIGR offers hardware-based write protection and sector protection, providing better data security than the M25P16-VMC6G.
Cost-Effective Solution: The GD25Q16ESIGR delivers a high performance-to-cost ratio, making it a more cost-effective solution compared to the M25P16-VMC6G.
In conclusion, the GD25Q16ESIGR outperforms competitors like the AT25DL161, M25P16-VMC6G, and M25P16-VMN3PB in terms of speed, power efficiency, temperature resilience, data retention, and security. With its cost-effective pricing and enhanced feature set, the GD25Q16ESIGR is an excellent choice for high-performance embedded systems, IoT devices, automotive applications, and industrial solutions, where speed, reliability, and energy efficiency are critical.
