NST235-DSTR
| Price: |
$0.1-$0.35 |
$0.48-$0.6 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
NST235-DSTR |
TMP235A2DBZR
TMP235A2DBZT
TMP235A4DBZR
TMP235A4DBZT
|
The NST235 is a high precision CMOS analog output temperature sensor. The device offers a maximum accuracy of ±0.5°C at 25°C and a maximum of ±2.5°C over the full temperature range. The device is specified at the full temperature range of -40°C to 150°C and the
power supply operating range is 2.3V to 5.5V.
The NST235 device provides a positive slope output of 10.0mV/°C over -40°C to 100°C. it is highly linear and does not require complex calculations or lookup tables to derive temperature.
The NST235 is a low power device, and the typical operating current is 20μA. Therefore, self-heating is negligible.
The NST235 is available in SC70(5) and SOT-23(3) package, making it suitable for on-board and off line applications in the industrial, and consumer markets applications in the IoT
High Accuracy Over –40 °C to 150 °C Temperature Range
- 0 °C ~ 70°C: 0.5 °C(Typical)
- 0 °C ~ 70°C: 1.5 °C(Maximum)
- -40 °C ~ 150°C: 2.5 °C(Maximum)
Operating Voltage Range: 2.3V to 5.5V
Average Sensor Gain o: 10mV/°C
Output Impedance: 1Ω (Typical)
Operating Current: 20μA (Typical)
Push-Pull Output Current Drain: 500µA (Maximum)
Predictable Curvature Error
Output Short Protection
Suitable for Remote Applications

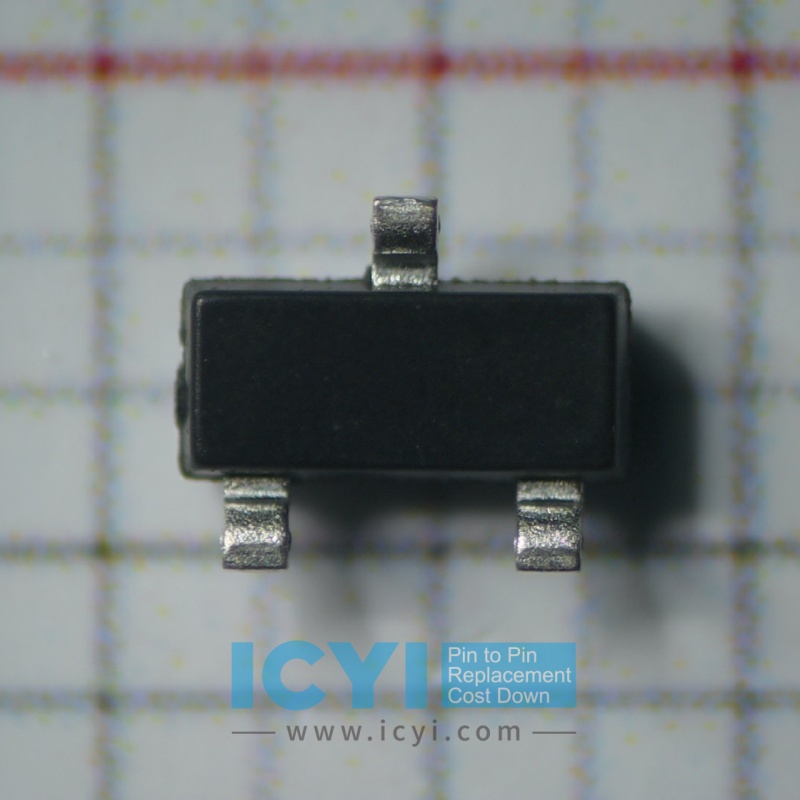

Package: SOT-23(3) and SC70(5)
Applications
Smartphones
Portable Medical Instruments
Notebook Computers
Industrial Internet of Things (IoT)
Power Supply Modules
Power-system Monitors
Thermal Protection
Environmental Monitoring and HVAC
Disk Drives
