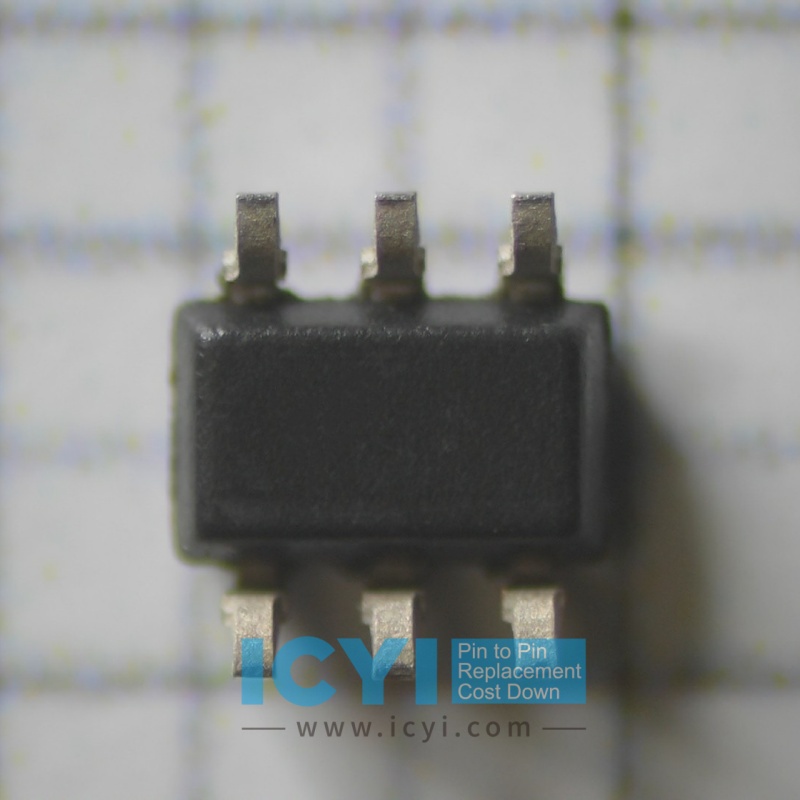

RS0101YC6
| Price: |
$0.10-$0.25 |
$0.35-$0.40 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
RS0101YC6 |
|
This 1-bit non-inverting translator is a bidirectional voltage level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65V to 5.5V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3V to 5.5V while it tracks the VCCB supply. This allows the support of both lower and higher ogic signal levels while providing bidirectional translation capabilities between any of the 1.8V, 2.5V, 3.3V and 5V voltage nodes.
When the output-enable (OE) input is low, all I/Os are placed in the high-impedance state, which significantly reduces the power-supply quiescent current consumption.
OE has an internal pull-down current source, as long as VCCA is powered. To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pull down resistor; the minimum value of the resistor is
determined by the current-sourcing capability of the driver.
The RS0101 is available in Green SOT23-6, SOT363(SC70-6) and DFN1.45x1.0-6L packages. It operates over an ambient temperature range of -40°C to +85°C.
• No Direction-Control
• Data Rates 24Mbps (Push-Pull) 2Mbps (Open-Drain)
• 1.65V to 5.5V on A ports and 2.3V to 5.5V on B Ports (VCCA≤VCCB)
• VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State
• No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First
• IOFF: Supports Partial-Power-Down Mode Operation
• Extended Temperature: -40°C to +85°C
Applications
• I2C/ SMBus
• UART
• GPIO
Packing & Delivery:
1. Shipping Method: Express (SF Express, DHL, TNT, FedEx, etc.), shipping charges are paid by the buyer.
2. Packaging Method: pressure-proof, moisture proof, shock-proof packaging.
3. Shipping Time: In stock items: 3-5 days. Lead Time orders: 45-65 days.
ONE-STOP Electronic Parts Supply Chain:
1. 18 years of experience in the electronic components industry, Our online service provided by over 80+ sales and technical.
2. Serving over 4500 global customers, Annual sales exceeding 50 million USD, and has an upward trend every year.
3. In recent years, many of our clients have adopted Chinese chip brands, reducing costs.
4. We guarantee the quality of each chip and can also provide samples for customers to test, addressing their concerns.
