RS0202XM
| Price: |
$0.15-$0.45 |
$1.0-$1.2 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
RS0202XM |
NLSX5012DMR2G
NLSX3012DMR2G
|
This 2-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A port supporting operating voltages from 1.2V to 3.6V while it tracks the VCCA supply, and the B port supporting operating voltages from 1.65V to 5.5V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.2V，1.5V，1.8V， 2.5V，3.3V and 5V voltage nodes. VCCA must not exceed VCCB.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor, the minimum value of the resistor is determined by the current-sourcing capability of the driver.

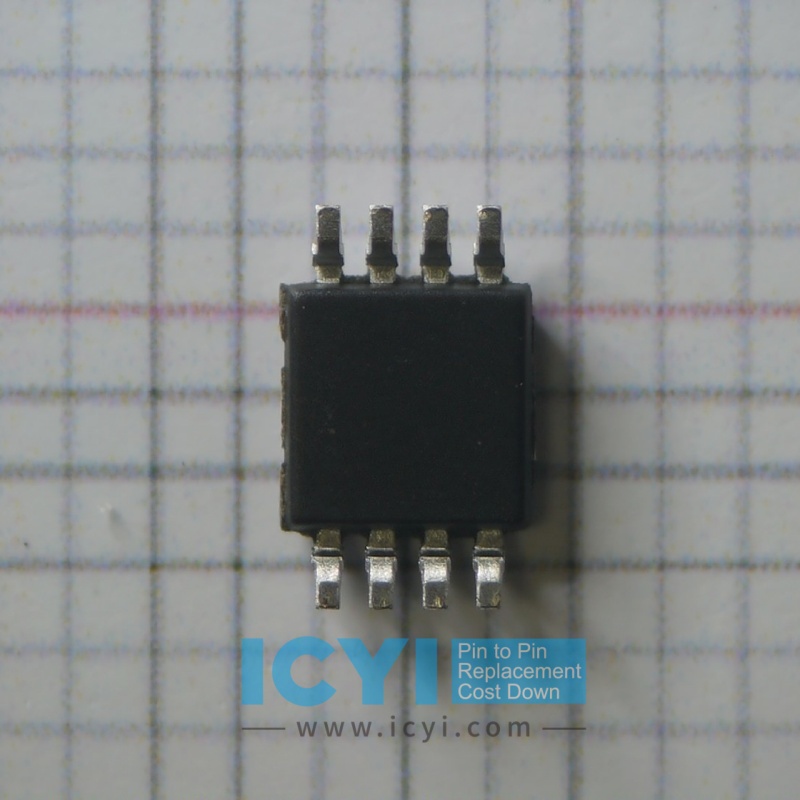

The RS0202 is available in Green SOT23-8, DFN2*3-8 and MSOP-8 packages. It operates over an ambient temperature range of -40°C to +85°C.
Product Specification
| Data Rates |
100Mbps
|
|
Temperature Range
|
-40°C to + 85°C
|
| SUPPLY RANGE |
1.2V to 3.6V on A Port and 1.65V to 5.5V on B Ports (VCCA≤VCCB)
|
| Applications |
• Handset
• Smartphone
• Tablet
• Desktop PC
|
|
|
| Package options |
SOT23-8, DFN2*3-8 and MSOP-8
|
|
|
Features
No Direction-Control
Data Rates: 100Mbps
1.2V to 3.6V on A Port and 1.65V to 5.5V on B Ports (VCCA≤VCCB)
VCC Isolation Feature: If Either VCC Input is at GND, Both Ports are in the High-Impedance State
Output Enable (OE) Input Circuit Referenced to VCCA
Low Power Consumption,10µA Maximum ICC
No Power-Supply Sequencing Required: Either VCCA or VCCB can be Ramped First
IOFF: Supports Partial-Power-Down Mode Operation
Extended Temperature: -40°C to +85°C
Applications
• Handset
• Smartphone
• Tablet
• Desktop PC
