RS2G17XH6
| Price: |
$0.08-$0.20 |
$0.30-$0.40 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
RS2G17XH6 |
SN74LVC2G17DBVTG4
SN74LVC2G17DBVT
SN74LVC2G17DBVR
|
The RS2G17 Dual Schmitt-trigger buffer is designed for 1.65V to 5.5V VCC operation.
The RS2G17 device contains two buffer and performs the Boolean function Y=A. The device functions as two independent buffers with Schmitt-trigger inputs, so the device has different input threshold levels for positive-going (VT+) and negative going (VT-) signals to provide hysteresis (ΔVT) which makes the device tolerant to slow or noisy input signals.
This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

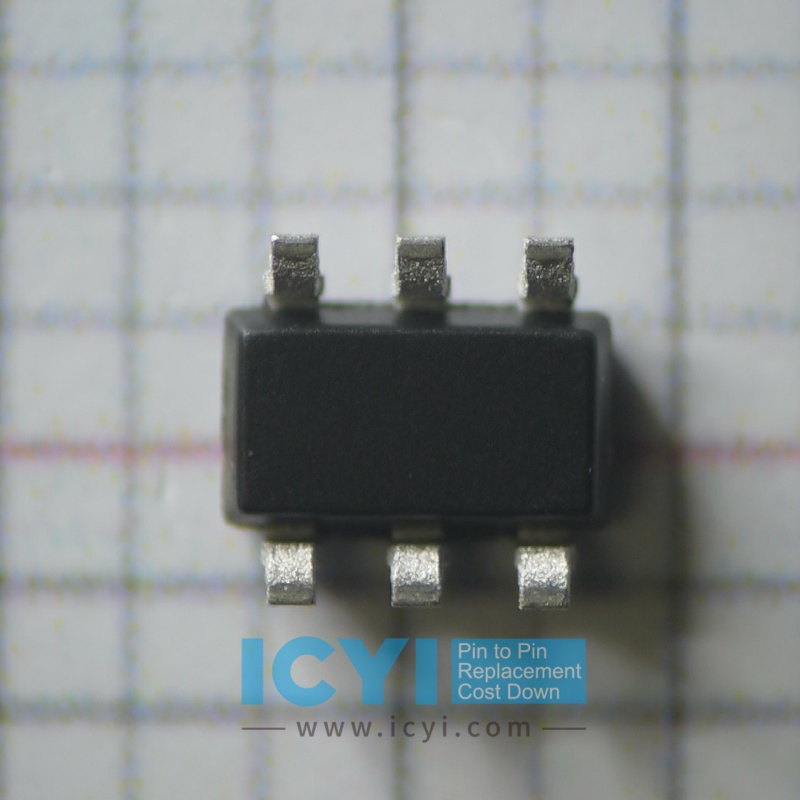

The RS2G17 is available in Green SOT23-6 and SC70-6 packages. It operates over an ambient temperature range of -40°C to +125°C.
• Operating Voltage Range:1.65V to 5.5V
• Low Power Consumption:1µA (Max)
• Operating Temperature Range: -40°C to +125°C
• Input Accept Voltage to 5.5V
• High Output Drive: ±24mA at VCC=3.0V
• Ioff Supports Partial-Power-Down Mode Operation
• Micro SIZE PACKAGES: SOT23-6, SC70-6
Applications
• AC Receiver and
• Home Theaters
• Blu-ray Players and Home Theaters
• Desktops or Notebook PCs
• Digital Video Cameras (DVC)
• Mobile Phones
• Personal Navigation Device (GPS)
• Portable Media Player
