RS8524XQ
| Price: |
$0.45-$0.85 |
$1.2-$1.45 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
RS8524XQ |
OPA4317IPWR
TLV4333IPWR
TLV4333IDR
|
The RS8521, RS8522, RS8524, RS8523 (dual version &shutdown) series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (5uV max) and near-zero drift over time and temperature.
This family of amplifiers has ultralow noise, offset and power. This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 350KHz and slew rate of 0.17V/us. Single or dual supplies as low as +2.3V (±1.15V) and up to +5.5V (±2.75V) may be used.

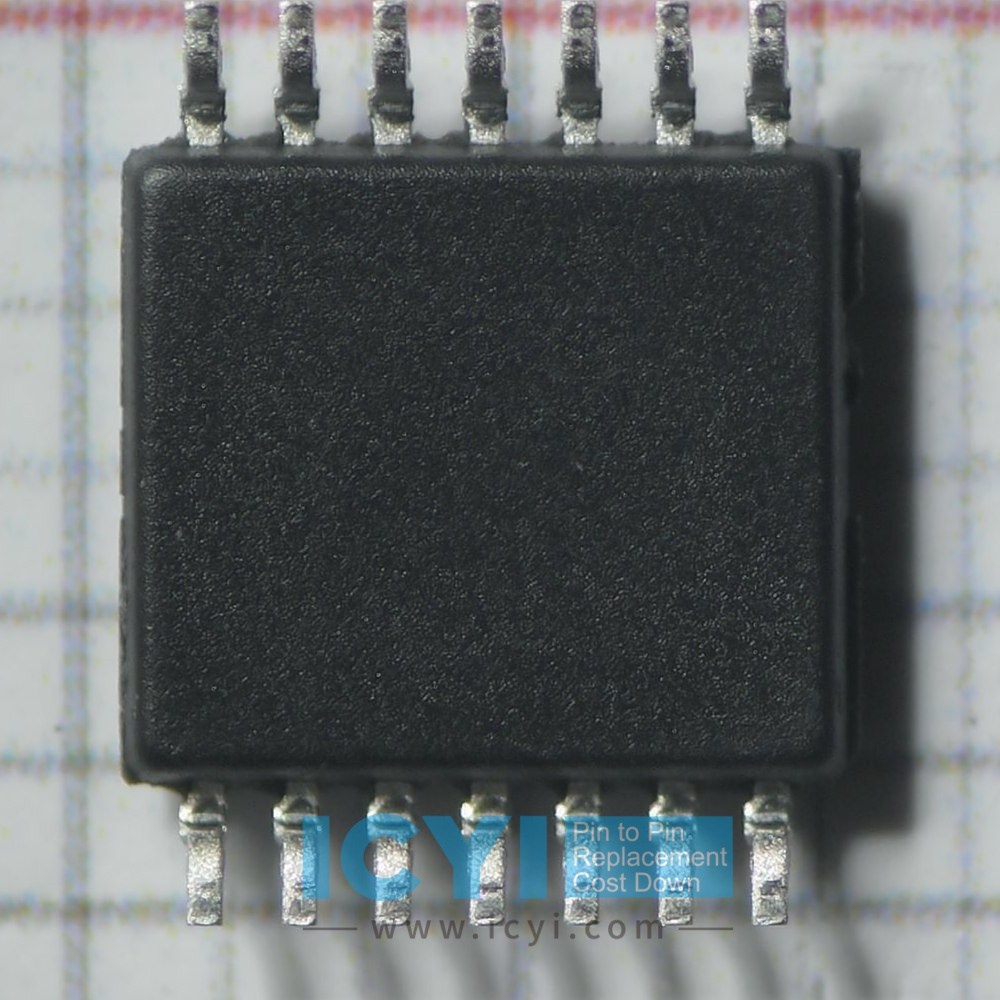

The RS8521/ RS8522/ RS8524/ RS8523 (dual version with shutdown) are specified for the extended industrial and automotive temperaturerange (-40°C to 125°C). The RS8521 single amplifier is available in 5-lead SOT23, 8-lead MSOP8 and 8-lead SOIC packages, The RS8522 dual amplifier is available in 8-lead SOIC and 8-lead TSSOP narrow surface mount packages, The RS8523(dual version with shutdown) comes in Micro-SIZE MSOP-10. The RS8524 quad is available in 14-lead SOIC and 14-lead narrow TSSOP packages.
• Low Offset Voltage: ±1uV (TYP)
• Input Offset Drift: ±0.005uV/°C
• High Gain Bandwidth Product: 350KHz
• Rail-to-Rail Input and Output
• High Gain, CMRR, PSRR: 130dB
• High Slew Rate: 0.17V/us
• Low Noise: 3.2uVp-p (0.01~10Hz)
• Low Power Consumption: 60uA /op amp
• Overload Recovery Time: 6us
• Low Supply Voltage: +2.3 V to +5.5 V
• No External Capacitors Required
• Extended Temperature: -40°C to +125°C
• Packaging: SOT23-5,SOIC-8,MSOP-8,DFN2×2-8L,SOIC-14,TSSOP-14
Applications
• Temperature Sensors
• Medical/Industrial Instrumentation
• Pressure Sensors
• Battery-Powered Instrumentation
• Active Filtering
• Weight Scale Sensor
• Strain Gage Amplifiers
• Power Converter/Inverter
