RS8558XK
| Price: |
$0.35-$0.75 |
$1.0-$1.5 |
Replace parts:
Replacement parts:
Alternative parts:
Pin to pin parts:
|
RS8559XQ |
OPA4376AIPWR
OPA4376AQPWRQ1
OPA4376AIPW
OPA4376AIPWRG4
|
The RS8557,RS8558,RS8559 series of CMOS operational amplifiers use auto-zero techniques to simultaneously provide very low offset voltage (50μVmax) and near-zero drift over time and temperature. This family of amplifiers has ultralow noise, offset and power.
This miniature, high-precision operational amplifiers offset high input impedance and rail-to-rail input and rail-to-rail output swing. With high gain-bandwidth product of 4.3MHz and slew rate of 2.5V/μs. Single or dual supplies as low as +2.7V (±1.35V) and up to +5.5V (±2.75V) may be used.

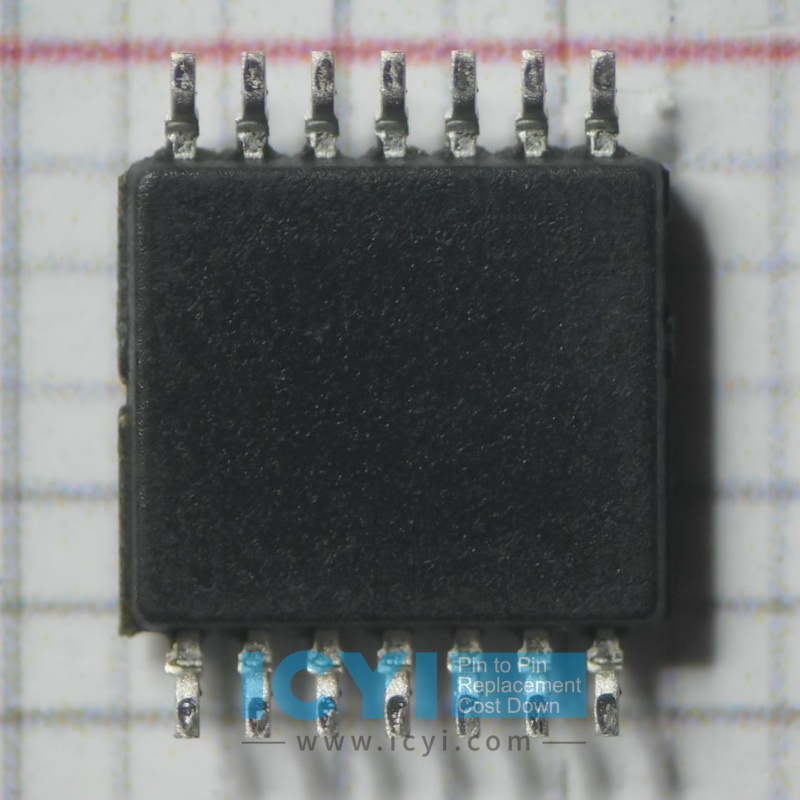

The RS8557/RS8558/RS8559 are specified for the extended industrial and automotive temperature range (-40°C to 125°C). The RS8557 single amplifier is available in 5-lead SOT23, 8-lead MSOP8 and 8-lead SOIC packages, The RS8558 dual amplifier is available in 8-lead SOIC and 8-lead MSOP narrow surface mount packages, The RS8559 quad amplifier is available in 14-lead SOIC and 14-lead narrow TSSOP packages.
Product Specification
| Low Offset Voltage |
20uV
|
| Input Offset Drift |
0.03μV/°C
|
| INPUT VOLTAGE RANGE |
+2.7V to +5.5V
|
| Wide operating temperature range |
40°C to 125°C |
| Applications |
• Temperature Sensors
• Medical/Industrial Instrumentation
• Pressure Sensors
• Battery-Powered Instrumentation
• Active Filtering
• Weight Scale Sensor
• Strain Gage Amplifiers
• Power Converter/Inverter
|
|
|
| Package options |
|
|
|
Features
Low Offset Voltage: 1uV
Input Offset Drift: 0.005μV/°C
High Gain Bandwidth Product: 4.5MHz
Rail-to-Rail Input and Output
High Gain, CMRR, PSRR:130dB
High Slew Rate: 2.7V/μs
Low Noise: 0.75uVp-p (0.01~10Hz)
Low Power Consumption: 640μA /op amp
Overload Recovery Time:1us
Low Supply Voltage: +2.7 V to +5.5 V
No External Capacitors Required
Extended Temperature: -40°C to +125°C
Applications
Temperature Sensors
Medical/Industrial Instrumentation
Pressure Sensors
Battery-Powered Instrumentation
Active Filtering
Weight Scale Sensor
Strain Gage Amplifiers
Power Converter/Inverter
